When appearance matters, choose METAPOR®.
METAPOR® is a composite material made of aluminum granules and epoxy resin. The material is air-permeable over the entire surface due to its micro-porous structure allowing for unique design considerations for prototype and production thermoform tools. In contrast to sintered materials, the pores do not close off after machining allowing excellent definition and surface quality.

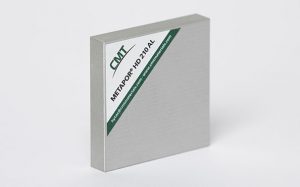

METAPOR® – HD 210 AL
Physical properties at 67°F (20 °C)
|PROPERTY||VALUE (ENG)||VALUE (SI)|
|Density||118.5 lb/ft3||1.9 g/cm3|
|Hardness Shore D||82||82|
|Flexural strength||6,239 psi||43 N/mm2|
|Flexural Modulus||1,567 ksi||10,800 N/mm2|
|Impact strength||5.2 ft-lb/in2||11 kJ/m2|
|Coefficient of thermal expansion
25 °C -125°C (77 – 257 °F)
|17.6 x 10-6 in/in/°F||32 x 10-6 mm/mm/°C|
at 100°C (212 °F)
|10.2 BTU/ hr-ft-°F||19 W / m-°C|
|Martens Dimensional Stability||410 °F||210 °C|
|Mean pore diameter||.0005 in||12 µm|
|Total porosity (by volume)||16%||16%|
Design and Handling
For detailed information on Handling, Machining and Adhesive bonding of METAPOR®, please refer to the “Handling Guidelines” brochure.
Store dry and flat to protect against jolts, impacts and bowing. Avoid contact with grease and fluids.
The machining properties of METAPOR® are excellent and are comparable with rapid machinable aluminium. METAPOR® must be machined dry and should not be in contact with any cooling liquids. In order to avoid any closure of pores, sharp tools made of HSS or carbide with edge angles as for aluminium must be used. It is recommended to use dust extraction. Avoid contact with grease and fluids
Grinding and polishing of the machined surfaces can be made by hand or with a vibrating grinder. Use corundum paper with grains of 400 / 600 / 1200 in the ascending order. METAPOR® has to be polished dry and without any polishing paste!
Air Flow Rates
The numbers are average values for calculating air consumption for overpressure or under pressure applications. Specification is in cubic inches per minute per in2.
METAPOR® is available in 4 standard sizes: 500L x 500W x 15 / 20 / 30 / 60mm (19.7” x 19.7 x 0.6 / 0.8 / 1.2 / 2.4”). After the cutting process, the air permeability of the slab surface is reduced due to partial closure of the pores. It is essential to mill both surfaces of the slab by cutting off approx. 0.5 mm, (0.02″), providing complete air permeability.
|PRESSURE DIFFERENCE IN BAR (PSI)||PLATE THICKNESS IN INCHES||PLATE THICKNESS IN INCHES||PLATE THICKNESS IN INCHES||PLATE THICKNESS IN INCHES||PLATE THICKNESS IN INCHES||PLATE THICKNESS IN INCHES||PLATE THICKNESS IN INCHES||PLATE THICKNESS IN INCHES|
