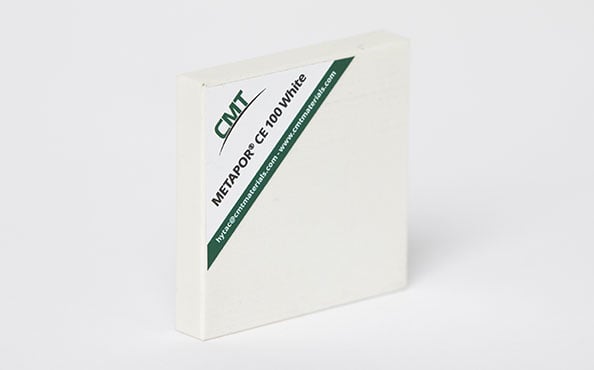

METAPOR® CE100 | white
When appearance matters, choose METAPOR®.
METAPOR® CE 100 White is an extremely fine porous material with a white non-reflexive surface and is easily workable. It has proven to be very useful in silicon-wafer production, also due to its strong surface hardness and precision milling capability. Flatness of vacuum chuck surfaces less than 5 micron.
METAPOR® – CE 100
Physical properties at 67°F (20 °C)
|PROPERTY||VALUE (ENG)||VALUE (SI)|
|Density||106.1 lb/ft3||1.7 g/cm3|
|Hardness Shore D||89||89|
|Flexural strength||4133 psi||28.5 Mpa|
|Flexural Modulus||2102 ksi||14,498 Mpa|
|Impact strength||0.475 ft-lb/in2||1.0 kJ/m2|
|Coefficient of thermal expansion
25 °C -125°C (77 – 257 °F)
|14 -16 x 10-6 in/in/°F||25 – 30 x 10-6 mm/mm/°C|
at 100°C (212 °F)
|0.86 BTU/ hr-ft-°F||1.6 W / m-°C|
|Martens Dimensional Stability||212 °F||100 °C|
|Total porosity (by volume)||20%||20%|
METAPOR® CE 100 White is manufactured in blocks of 500 x 500 x 400 mm, (~20″ x 20″ x 16″), and is cut into slabs of any required thickness. After the cutting process, the air permeability of the slab surface is reduced due to partial closure of the pores. It is essential to mill both surfaces of the slab by cutting off approx. 0.25 mm, (0.010″), providing complete air permeability.
Store dry and flat to protect against jolts, impacts and bowing. Avoid contact with grease and fluids.
The machining properties of METAPOR® CE 100 White are excellent and are comparable with rapid machinable aluminium. METAPOR® CE 100 White must be machined dry and should not be in contact with any cooling liquids. In order to avoid any closure of pores, appropriate aluminium cutting tools must be used.
Grinding and polishing of the machined surfaces can be made by hand or with a vibrating grinder. Use corundum paper with grains of 400 / 600 / 1200 in ascending order. METAPOR® CE 100 White has to be polished dry and without any polishing paste!
Air Flow Rates
The numbers are average values for calculating air consumption for overpressure or under pressure applications. Specification is in liters per minute per cm2.
|PRESSURE DIFFERENCE IN BAR (PSI)||PLATE THICKNESS (MM)||PLATE THICKNESS (MM)||PLATE THICKNESS (MM)||PLATE THICKNESS (MM)||PLATE THICKNESS (MM)|
